Triple glazed tempered glass is standard on all GlasFëns products.
Free delivery nationwide.

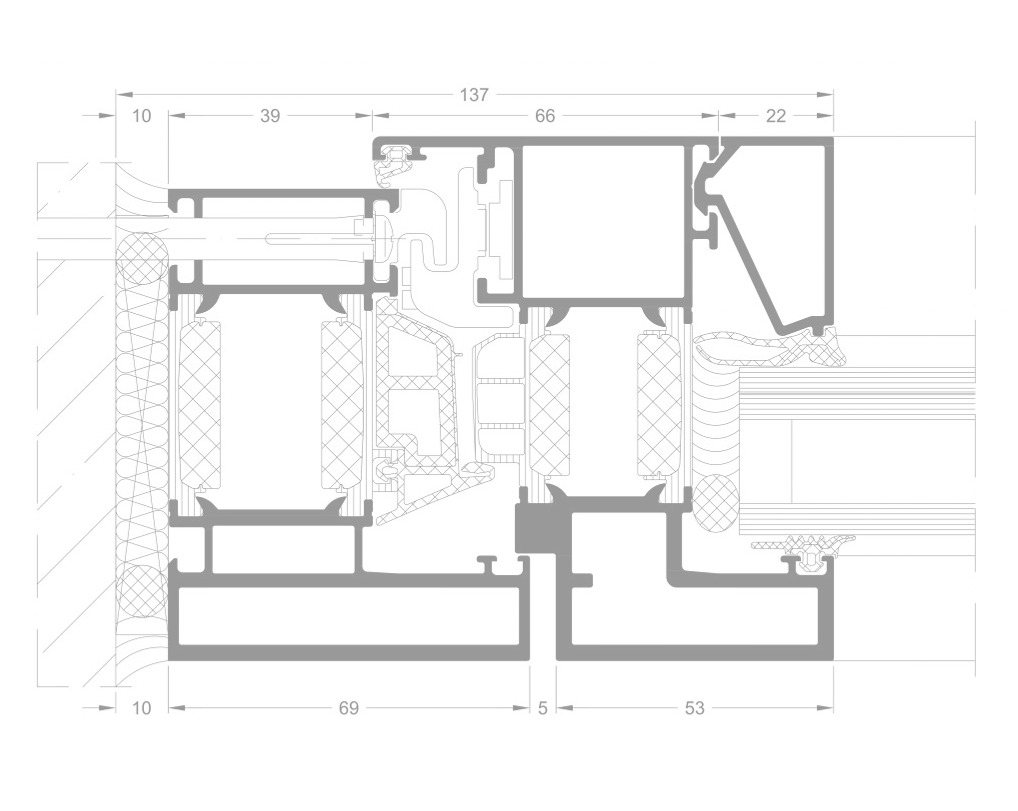

The products and drawings on this page represent the most common requested design and engineering. All products can be modified within the limitations of the hardware, and components from our suppliers, and the certifications and building codes of your area.
We offer product details in the following formats: PDF and DWG. Contact us for product details, hardware options and window and door accessories at info@glasfens.com.
The use of nylon polyamide thermal break profiles allows for dual finish combinations. The frames can be finished in a wide array of powder-coated or anodized finishes to complement any design.
We offer low-emissivity materials, package solutions and polyamide foam to optimize systems and ensure the perfect solution for every requirement.
Owners have a wide array of custom options. They can specify dimensions, colors, weather seals, hardware, warm edge spacers, glass packages, subsills, receptors, and trim packages.
A variety of technical solutions enable production of large dimension windows and undertaking the most sophisticated custom orders.
Testing and performance results may vary depending upon sill, size and hardware selections. Please be sure to contact your Glasfëns representative for additional product information.
Custom aluminium windows and doors in accordance with your specifications and building codes.
| yes | Fixed |
| yes | Tilt & turn (inward) |
| yes | Tilt (inward hopper) |
| yes | Casement (inward) |
| yes | Double Casement (inward) |
| yes | Mulled options |
| yes | Unitized Storefront (factory-assembled) |
| yes | Unitized Curtainwall (factory-assembled) |
| yes | Unitized Window wall (factory-assembled) |
| yes | $62-76 sq ft | all inclusive pricing | taxes & shipping included |
| yes | 0.20-0.30 Btu/h·ft²·°F Triple Glazed (total window/door) |
| yes | 0.30-0.35 Btu/h·ft²·°F Double Glazed (total window/door) |
| yes | HOPPE Handles (Switzerland made) |
| yes | ROTO Hardware & Locks (German made) |
| ---------------------------------------------- | |
| yes | Double Weather Stripping |
| yes | SEMPERIT Weather Stripping (German) |
| ---------------------------------------------- | |
| yes | TECHNOFORM Thermal Break (German) |
| ---------------------------------------------- | |
| yes | SAINT GOBAIN Swisspacer (Swiss made) |
| yes | KÖMMERLING 4SG TPS (German made) |
| ---------------------------------------------- | |
| yes | TIGER Powder Coat (Austrian) AAMA2605 |
| ---------------------------------------------- | |
| yes | 5-10 Multi-Point Perimeter Lock (German) |
| ---------------------------------------------- | |
| yes | Double Pane Option |
| yes | Triple Pane Option |
| yes | Vacuum Insulated Glass Option - Single |
| yes | Vacuum Insulated Glass Option - Double |
| ---------------------------------------------- | |
| yes | True Divided Lites |
| yes | Grids Between Glass |
| yes | Simulated Divided Lites |
| ---------------------------------------------- | |
| yes | Fixed Mesh Insect Screen |
| yes | Retractable Add-On Insect Screen |
| yes | Removable Fiberglass Insect Screen |
| yes | Operable Mesh Insect Screens (outward) |
| ---------------------------------------------- | |
| yes | Bullet Resistant |
| yes | Concealed Hinges |
| yes | Motorized Option |
| yes | Dual Color (Int & Ext) |
| yes | Dow silicones (USA made) |
| yes | Standard and Custom Finishes |
| yes | High Recycled Content Aluminum |
| yes | Consistent Sightlines within Systems |
| yes | Heavy salt water resistant finishes available |
| yes | LEED friendly, including recycled content |
| Description | Test Standard | Result |
| Frame U-Factor (European-metric) | DIN EN ISO 1077-2 | 1.64 W/(m²K) U-Factor |
| Frame U-Factor (US-imperial) | DIN EN ISO 1077-2 | 0.29 Btu/h·ft²·°F U-Factor |
| Frame R-Value (US-imperial) | DIN EN ISO 1077-2 | 3.46 Btu/h·ft²·°F R-Value |
| Sound reduction | DIN EN ISO 140-3 | 44 dB(a) |
| Air permeability | DIN EN 12207 | Class 4 |
| Watertightness | DIN EN 12208 | E 750 |
| Burglar resistance | DIN EN 1627 | Up to RC4 |
| Wind load resistance | DIN EN 12210* | Class C5 / B5 |
| Durability | DIN EN 12400 | - |
| Mechanical loading | DIN EN 13115 | Class 4 |
| Bullet resistance | DIN EN 13115 | Up to FB1, Up to FB2, Up to FB3, Up to FB4 |
